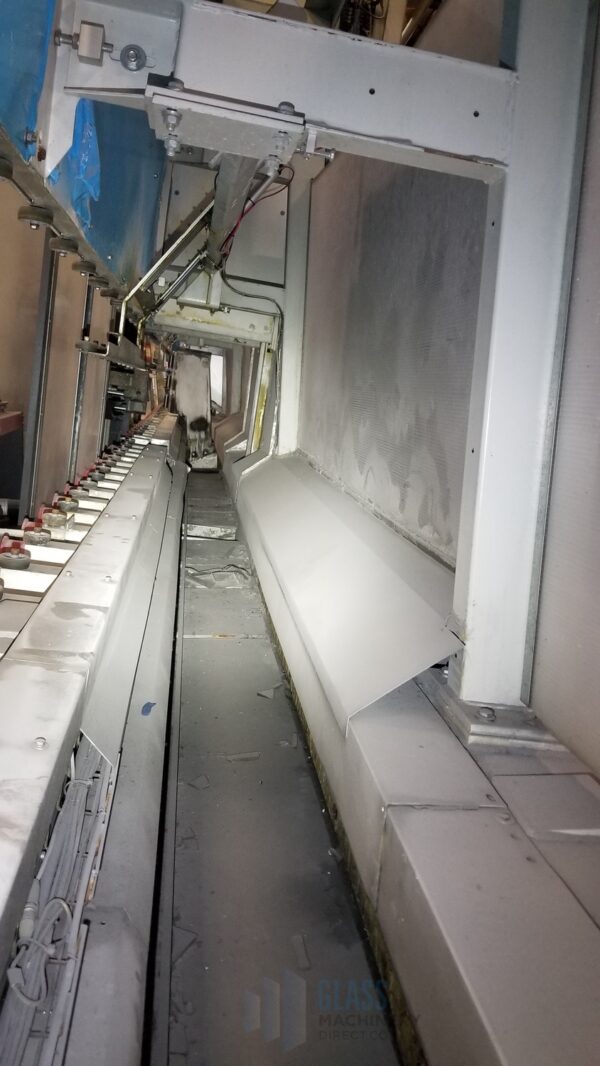

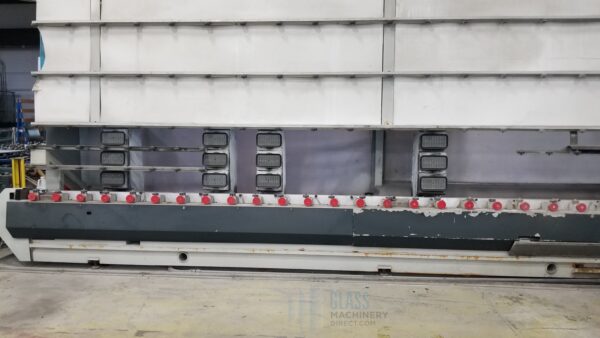

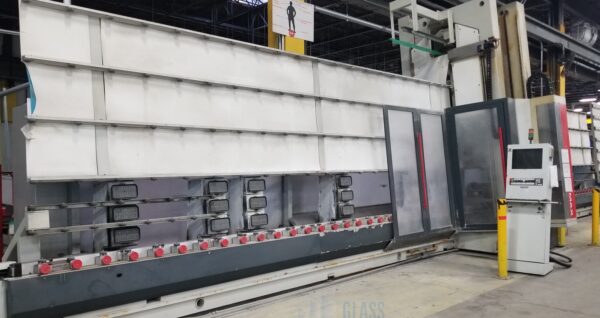

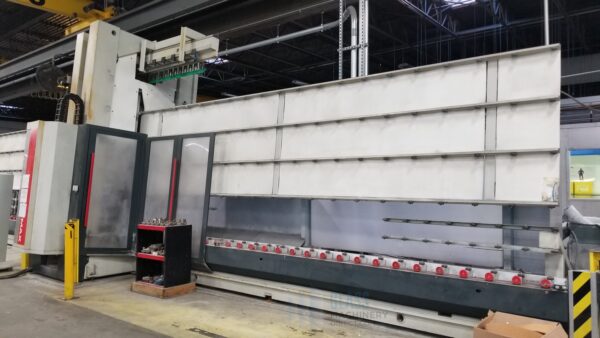

Intermac Vertmax Vertical CNC Glass Machine Center SOLD

The Intermac VERTMAX was very well maintained and can easily perform boring, countersinking, and milling operations on a sheet of glass, and can also carry out grinding and polishing operations on the sheet’s edge. The machine features CNC control of the glass drilling programs and graphic visualization of the programs. It also has a self-learning feature that adjusts the drill bit length and controls the penetration depth according to the glass thickness, monitored by an anti-collision system of tools. With the tandem machining process, workpieces can be loaded and unloaded while the machine is operating, which enhances productivity. The maximum panel size allowed for tandem machining is 2,100 mm (82-1/2″). The seller is motivated to sell by mid-July.

Specifications:

• Max. glass size: 2,600 × 5,000 mm (102″ X 196″)
• Min. glass size: 500 × 300 mm • Glass thickness: 4 – 25 mm
• Max. drill: 80 mm (3-1/8″)
• Tool magazine positions: 18 + 19
• Inclination: 5° – Left to right travel
• Max. spindle rotation: 12,000 RPM
• Suction cup carriage speed: 80 m/Min

• Feed speed: 30 MPM

• Y-Axis speed: 40 MPM

• Dimensions: 4,000 × 10,720 × 4,000 mm (157″ x 422″ x 157″)
• Weight: 12,500 kg (27,500 lbs)
